PA-1030 A92.20

Push-Around Scissor Lift

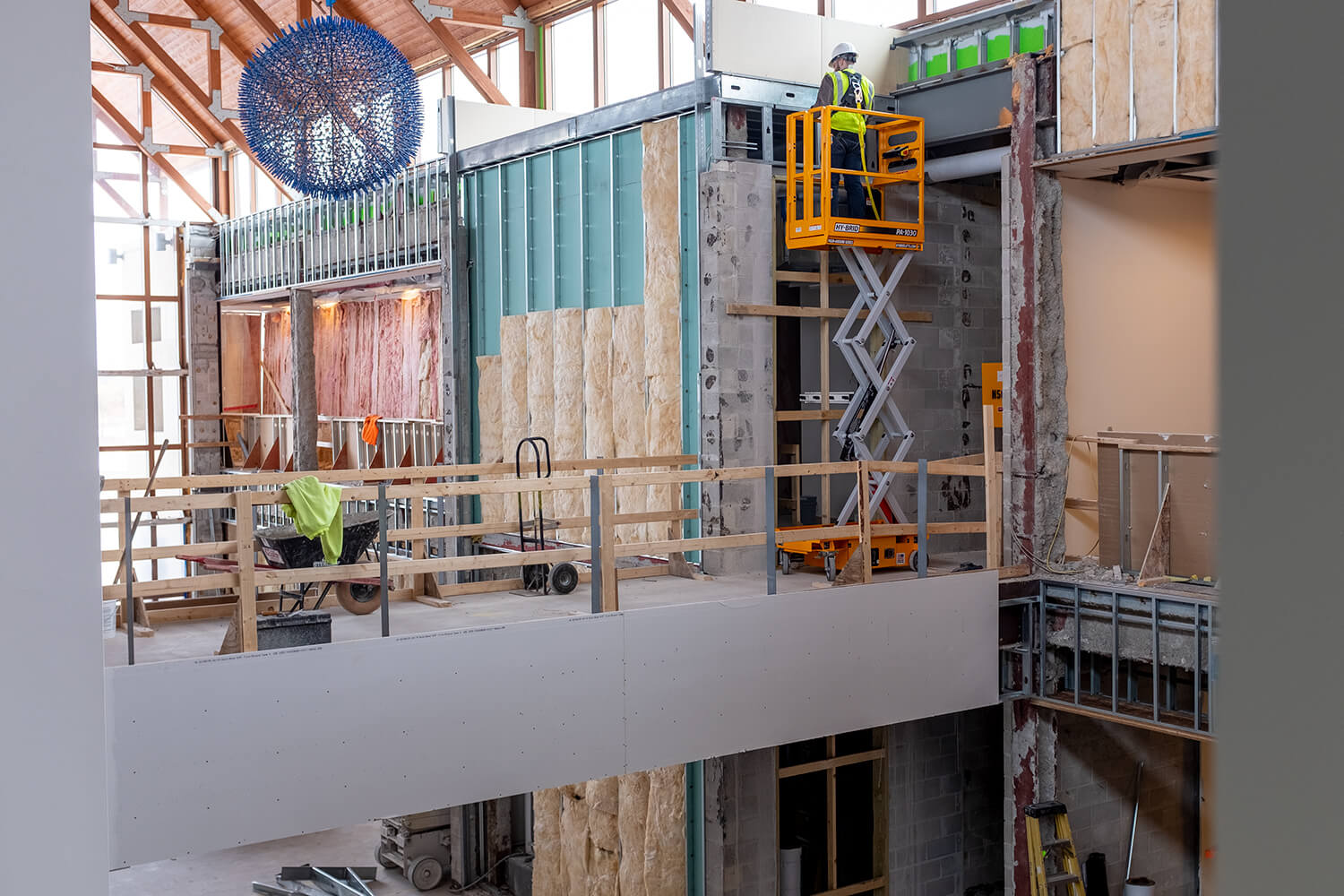

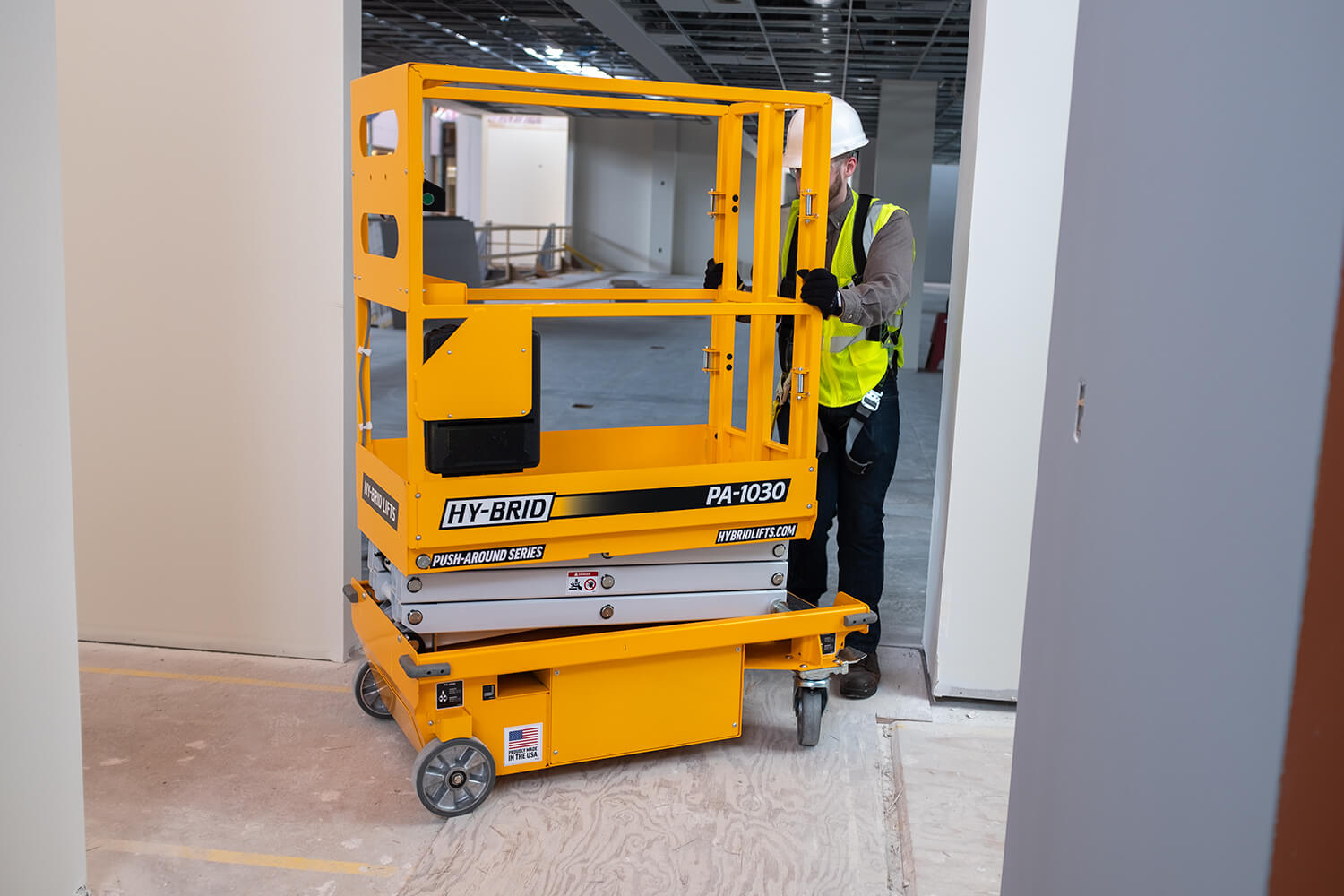

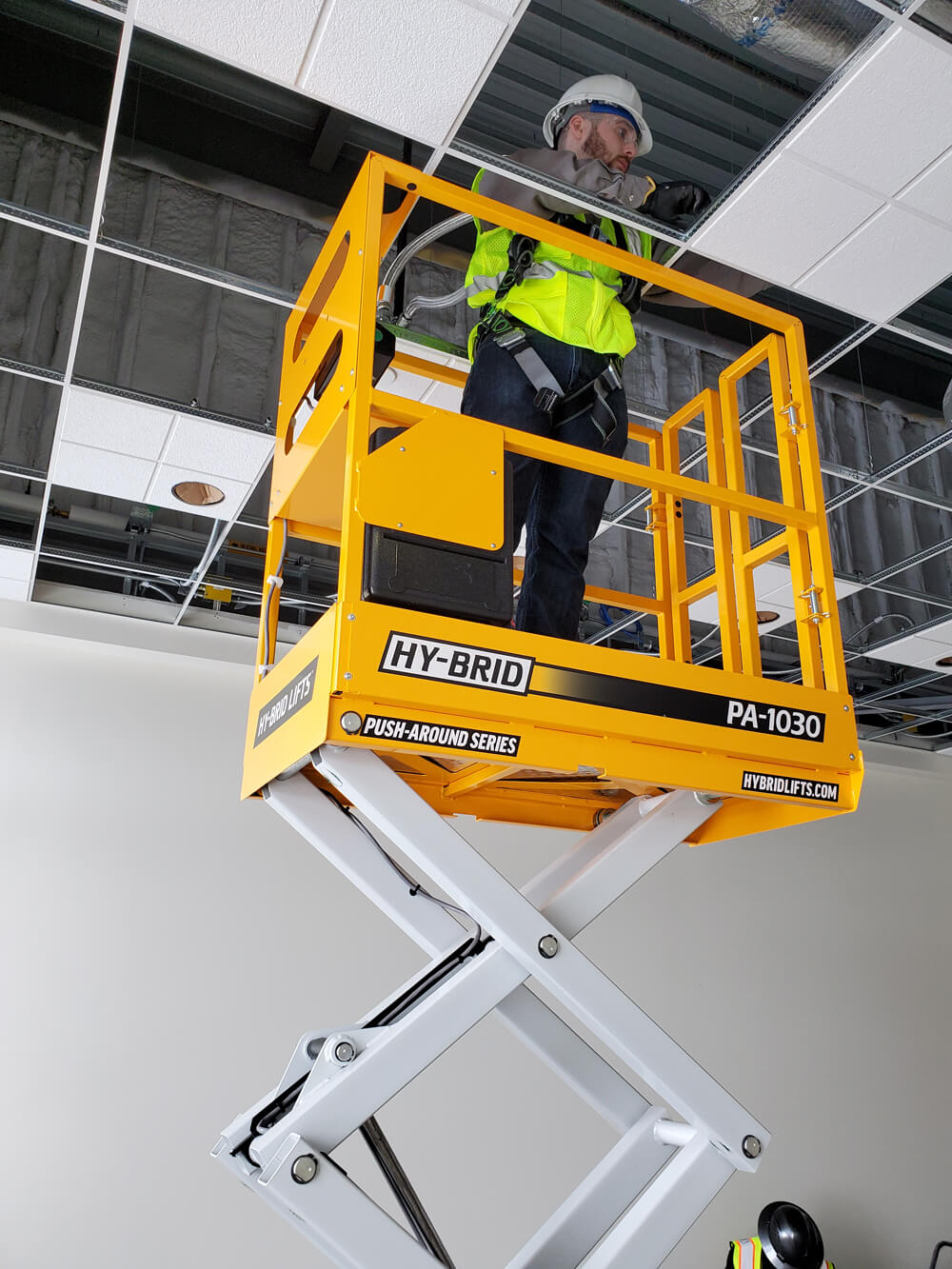

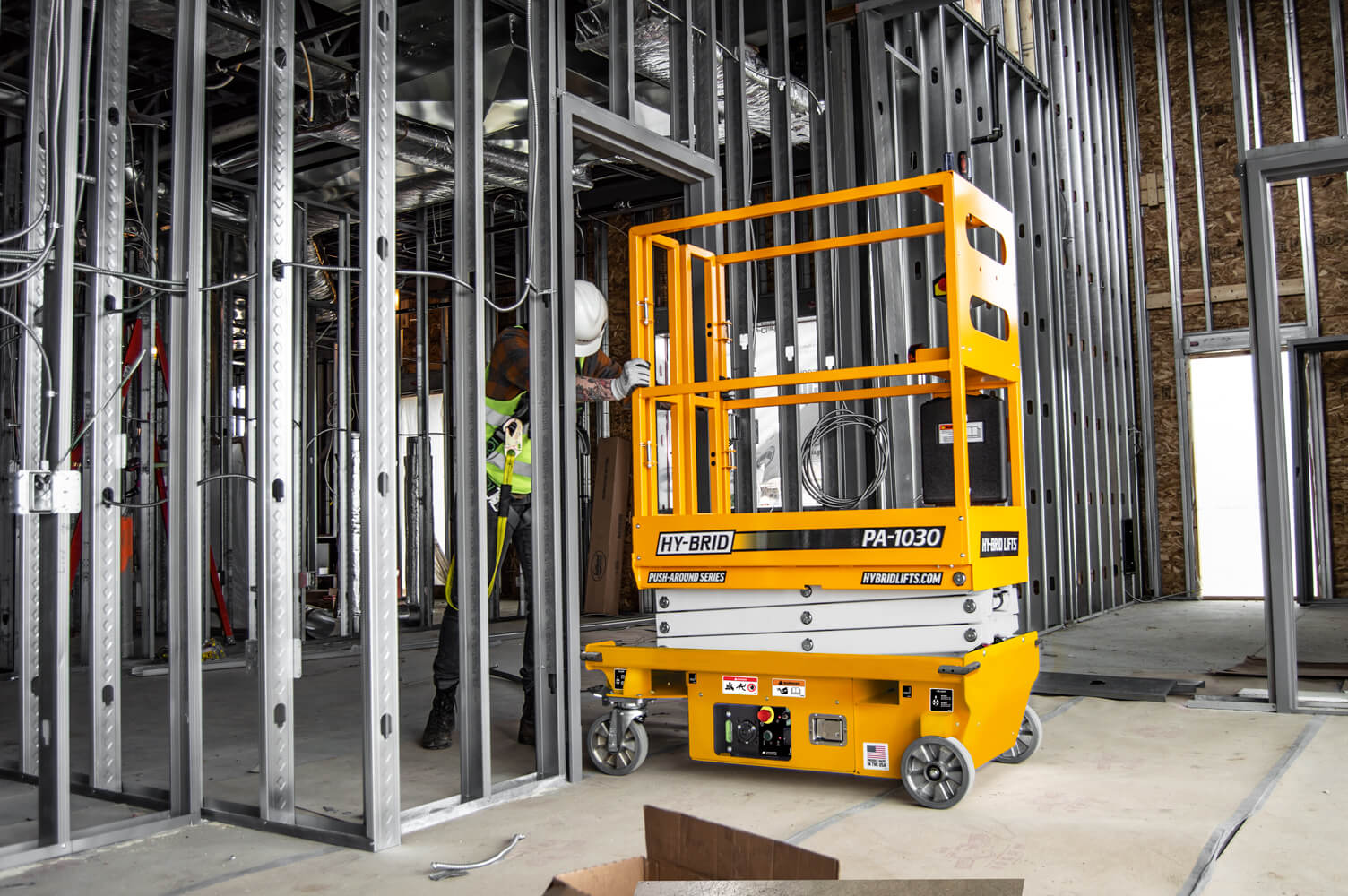

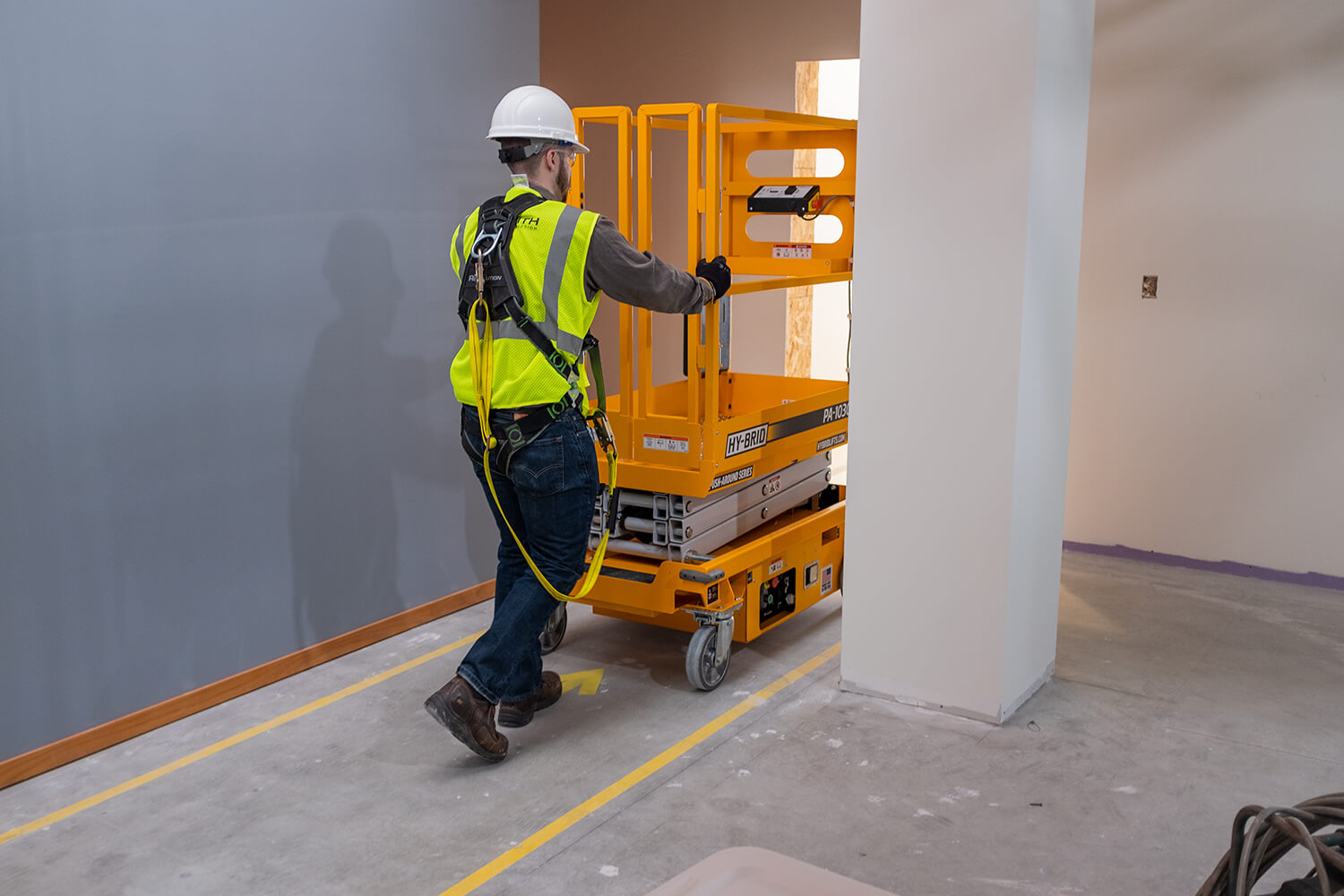

The Hy-Brid Lifts PA-1030 manlift eliminates operator fatigue from repeatedly climbing ladder rungs and scaffolding. As part of the Push-Around Series, this scissor lift offers a compact footprint and easy maneuverability on jobsites with tight spaces.

  • PA-1030
  • PA-1030
  • PA-1030
  • PA-1030
  • PA-1030
  • PA-1030
  • Who is Using the PA-1030 & Why?

Key Features

  • Working height up to 16 ft
  • Platform capacity up to 530 lbs
  • Low floor load pressures
  • Full height saloon-style entry gate
  • Non-marking wheels
  • 2-year parts & labor warranty
  • 5-year structural warranty
  • ANSI A92.20 compliant
  • CSA B354.6:17 compliant
  • EN-280:2013+A1:2015 compliant

Options

  • 110V power-to-platform
  • Flashing beacon
  • AGM batteries
  • Inverter
Wheel Load at Maximum Capacity372.1 psi2565.5 kPa
Wheel Load at Minimum Capacity315 psi2171.9 kPa
Wheel Load at 500 lbs Capacity369.6 psi2548.3 kPa
Ground Clearance Lowered2.6 in6.6 cm
Platform Height Maximum (1 Person Indoor)10 ft3 m
Platform Height Minimum25.2 in64 cm
Working Height (1 Person Indoor)16 ft4.9 m
Overall Length51.3 in130.3 cm
Overall Width29.8 in75.7 cm
Platform Length40.9 in103.9 cm
Platform Width20.5 in52.1 cm
Stowed Height68.7 in174.5 cm
Tires (Front/Rear)8/8 in20.3/20.3 cm
Inside Turn RadiusZeroZero
Lift Speed (Up/Down)18/20 sec18/20 sec
Platform Capacity530 lbs240.4 kg
Power Source12V DC12V DC
Rated Occupancy (Indoor)1 Person1 Person
Weight893 lbs405.1 kg
