ZT-1630 A92.20

Zero-Turn Scissor Lift

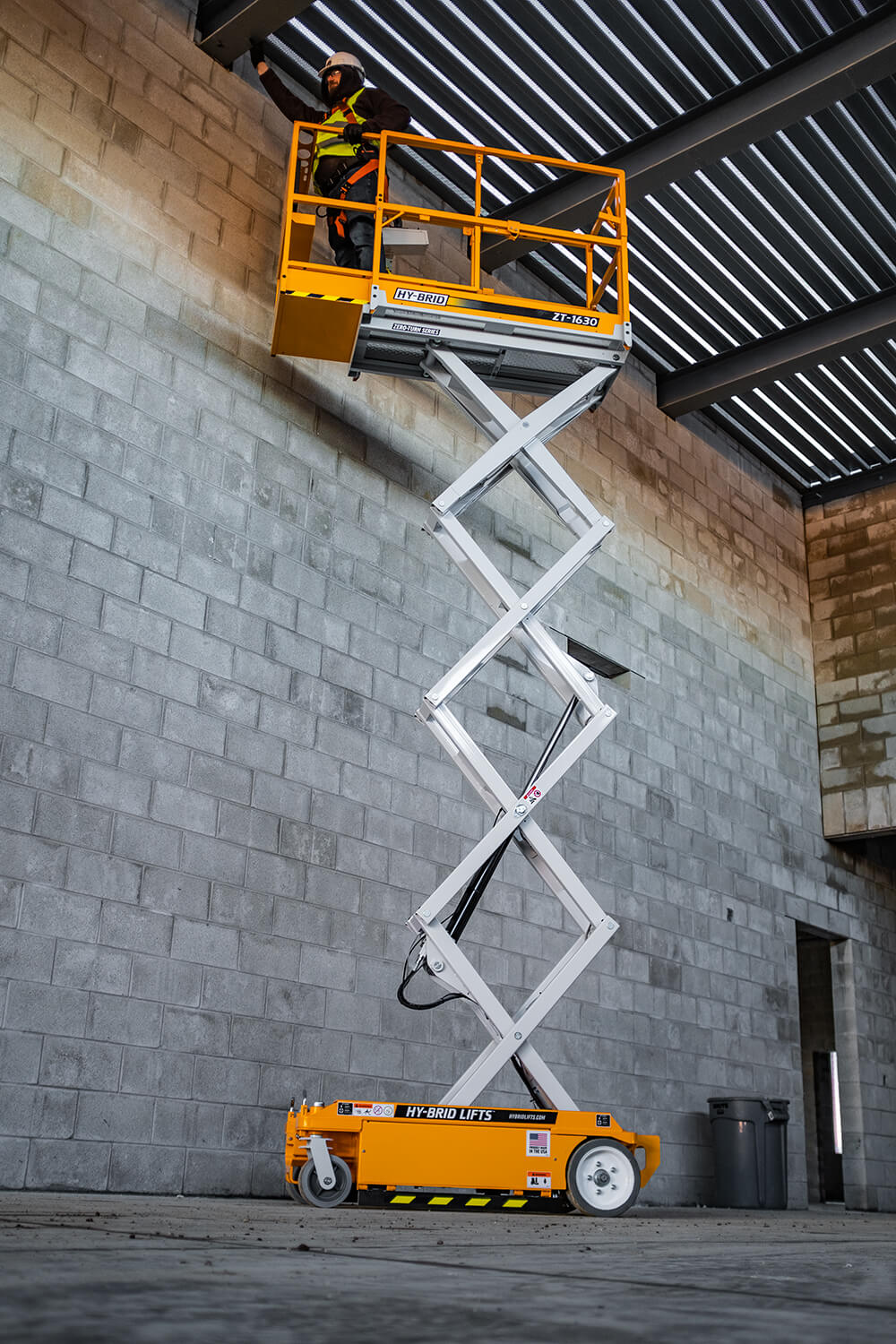

The Hy-Brid Lifts ZT-1630 electric scissor lift keeps operators working at height for longer. This Zero-Turn Series lift offers a compact design, zero degree turn radius, and fully proportional drive and lift for maximum maneuverability in confined spaces.

  • ZT-1630
  • ZT-1630
  • ZT-1630 Overview

Key Features

  • Working height up to 22 ft
  • Platform capacity up to 550 lbs
  • Zero-turn radius
  • Low floor load pressures
  • Total Control Drive System
  • EZ-Glide slide out extension deck
  • Non-marking wheels
  • 2-year parts & labor warranty
  • 5-year structural warranty
  • ANSI A92.20 compliant
  • CSA B354.6:17 compliant

Options

Wheel Load at Maximum Capacity186 psi1282.4 kPa
Wheel Load at Minimum Capacity143.9 psi992.1 kPa
Wheel Load at 500 lbs Capacity174.4 psi1202.4 kPa
Ground Clearance Lowered3.6 in9.1 cm
Ground Clearance Elevated0.5 in1.3 cm
Platform Height Maximum (1 Person Indoor)16 ft4.9 m
Platform Height Minimum24 in61 cm
Working Height (1 Person Indoor)22 ft6.7 m
Overall Length w/ Step62 in157.5 cm
Overall Width30 in76.2 cm
Slide Out Extension Deck Length30 in76.2 cm
Platform Length53 in134.6 cm
Platform Width24 in61 cm
Stowed Height68 in172.7 cm
Tires (Front/Rear)8/12 in20.3/30.5 cm
Drive Speed Elevated (Proportional)0.9 mph0.4 m/s
Drive Speed Lowered (Proportional)2.7 mph1.2 m/s
Slide Out Extension Deck Capacity250 lbs113.4 kg
Gradeability25%25%
Inside Turn RadiusZeroZero
Lift Speed (Up/Down)18/18 sec18/18 sec
Platform Capacity550 lbs249.5 kg
Power Source24V DC24V DC
Rated Occupancy (Indoor)1 Person1 Person
Weight1733 lbs786 kg
Platform Height Maximum (2 Person Indoor/1 Person Outdoor)7 ft2.1 m
Working Height (2 Person Indoor/1 Person Outdoor)13 ft3.7 m
