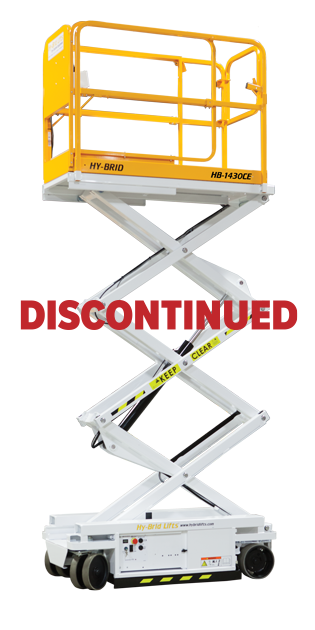

HB-1430CE

Self-Propelled Scissor Lift

The Hy-Brid Lifts HB-1430CE electric scissor lift has a high lifting capacity, low step-in height, and lightweight design, making this Pro Series lift the ideal choice for a variety of applications.

Key Features

Working height up to 6.3 m
Platform capacity up to 304 kg
Weighs only 991.8 kg
Low floor load pressures
Proportional controls
Slide out extension deck w/ slip-resistant surface
Full swing entry gate
Non-marking wheels
2-year parts warranty
5-year structural warranty
CE certified

Options

Power-to-platform

Floor LoadingMaximum Wheel Load		960.4 kPa
Floor LoadingMinimum Wheel Load		735.7 kPa
HeightsGround Clearance Lowered		7.6 cm
HeightsGround Clearance Raised		1 cm
HeightsPlatform Height Max (indoors)		4.3 m
HeightsPlatform Height Min		0.69 m
HeightsWorking Height (indoors)		6.3 m
MeasurementsOverall Length		1.76 m
MeasurementsOverall Width		0.76 m
MeasurementsPlatform Extension		0.76 m
MeasurementsPlatform Length		1.52 m
MeasurementsPlatform Width		0.64 m
MeasurementsStowed Height		1.80 m
PerformanceExtension Capacity		113.4 kg
PerformanceInside Turning Radius		0.53 m
PerformanceLift Speed Up/Down		15/22 sec
PerformancePlatform Capacity		304 kg
PerformanceRated Occupancy		2 Person(s)
PerformanceWeight		991.8 kg

Resources

Product Brochure

Series 3 Maintenance and Troubleshooting Manual

Series 3 Operations and Safety Manual

Series 1/2/3 Decal Addendum
