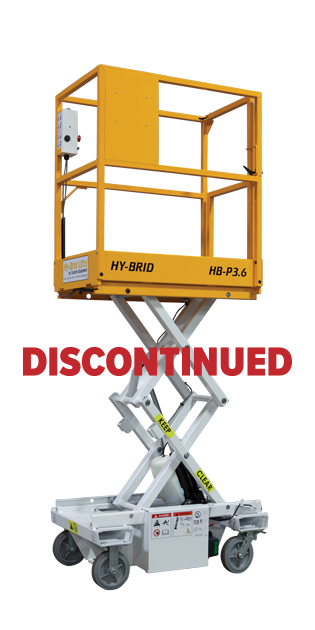

HB-P3.6

Push-Around Scissor Lift

The Hy-Brid Lifts HB-P3.6 manual scissor lift is part of our Push-Around Series. This manlift takes operator safety seriously, allowing workers to stay at height for longer and complete more jobs.

  • HB-P3.6
  • Hy-Brid Lifts by Custom Equipment

Key Features

  • Working height up to 3.6 m
  • Platform capacity up to 227 kg
  • Low floor load pressures
  • Full swing entry gate
  • 12V AGM battery
  • Non-marking wheels
  • 2-year parts warranty
  • 5-year structural warranty
  • CE certified

Options

  • Power-to-platform
Maximum Wheel Load215 psi1482.37 kPa
Minimum Wheel Load115 psi792.89 kPa
Ground Clearance2.5 in0.06 m
Platform Height Max (indoors)5.25 ft1.6 m
Platform Height Min20.28 in0.52 m
Working Height (indoors)11.81 ft3.6 m
Overall Length41 in1.04 m
Overall Width26.6 in0.67 m
Platform Length37 in0.94 m
Platform Width22 in0.56 m
Stowed Height63.59 in1.62 m
Lift Speed Up/Down9/12 sec9/12 sec
Platform Capacity500 lbs227 kg
Rated Occupancy1 Person1 Person
Weight575 lbs261 kg
8422/scissor-lift/en/Hybrid-HB-P3.6-Slab-Scissor-Lift.htmHB-P3.6-en<h2>Push-Around Scissor Lift</h2> <p>The Hy-Brid Lifts HB-P3.6 manual scissor lift is part of our <a href="/ansi/Scissor-Lifts/Push-Around-Series.htm" linktype="2" target="_self">Push-Around Series</a>. This manlift takes operator safety seriously, allowing workers to stay at height for longer and complete more jobs.</p><h4>Key Features</h4> <ul> <li>Working height up to 3.6 m</li> <li>Platform capacity up to 227 kg</li> <li>Low floor load pressures</li> <li>Full swing entry gate</li> <li>12V AGM battery</li> <li>Non-marking wheels</li> <li>2-year parts warranty</li> <li>5-year structural warranty</li> <li>CE certified</li> </ul> <h4>Options</h4> <ul> <li>Power-to-platform</li> </ul>HB-P3.6Hy-Brid HB-P3.6 Slab Scissor LiftHB-P3.6 Slab Scissor Lift | Hy-Brid LiftsView product information, specifications, and documentation for the Hy-Brid Lifts HB-P3.6 slab scissor lift.hbp3.6, HB-P3.6, Hy-Brid HB-P3.6 Slab Scissor Lift, hybrid lifts hbp3.6, Hy-Brid Lifts HB-P3.6735261/product_specifications/en/HB-P3.6-en-Specification-Floor-Loading-Maximum-Wheel-Load.htm168HB-P3.6-enMaximum Wheel Load215 psi1482.37 kPa15HB-P3.6-en Specification Floor Loading Maximum Wheel LoadLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryFloor LoadingProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735251/product_specifications/en/HB-P3.6-en-Specification-Floor-Loading-Minimum-Wheel-Load.htm167HB-P3.6-enMinimum Wheel Load115 psi792.89 kPa14HB-P3.6-en Specification Floor Loading Minimum Wheel LoadLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryFloor LoadingProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735151/product_specifications/en/HB-P3.6-en-Specification-Heights-Ground-Clearance.htm157HB-P3.6-enGround Clearance2.5 in0.06 m4HB-P3.6-en Specification Heights Ground ClearanceLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735131/product_specifications/en/HB-P3.6-en-Specification-Heights-Platform-Height-Max.htm155HB-P3.6-enPlatform Height Max (indoors)5.25 ft1.6 m2HB-P3.6-en Specification Heights Platform Height MaxLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735141/product_specifications/en/HB-P3.6-en-Specification-Heights-Platform-Height-Min.htm156HB-P3.6-enPlatform Height Min20.28 in0.52 m3HB-P3.6-en Specification Heights Platform Height MinLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735121/product_specifications/en/HB-P3.6-en-Specification-Heights-Working-Height.htm154HB-P3.6-enWorking Height (indoors)11.81 ft3.6 m1HB-P3.6-en Specification Heights Working HeightLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryHeightsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735161/product_specifications/en/HB-P3.6-en-Specification-Measurements-Overall-Length.htm158HB-P3.6-enOverall Length41 in1.04 m5HB-P3.6-en Specification Measurements Overall LengthLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735171/product_specifications/en/HB-P3.6-en-Specification-Measurements-Overall-Width.htm159HB-P3.6-enOverall Width26.6 in0.67 m6HB-P3.6-en Specification Measurements Overall WidthLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735191/product_specifications/en/HB-P3.6-en-Specification-Measurements-Platform-Length.htm161HB-P3.6-enPlatform Length37 in0.94 m8HB-P3.6-en Specification Measurements Platform LengthLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735201/product_specifications/en/HB-P3.6-en-Specification-Measurements-Platform-Width.htm162HB-P3.6-enPlatform Width22 in0.56 m9HB-P3.6-en Specification Measurements Platform WidthLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735181/product_specifications/en/HB-P3.6-en-Specification-Measurements-Stowed-Height.htm160HB-P3.6-enStowed Height63.59 in1.62 m7HB-P3.6-en Specification Measurements Stowed HeightLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryMeasurementsProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735241/product_specifications/en/HB-P3.6-en-Specification-Performance-Lift-Speed-UpDown.htm166HB-P3.6-enLift Speed Up/Down9/12 sec9/12 sec13HB-P3.6-en Specification Performance Lift Speed Up/DownLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735211/product_specifications/en/HB-P3.6-en-Specification-Performance-Platform-Capacity.htm163HB-P3.6-enPlatform Capacity500 lbs227 kg10HB-P3.6-en Specification Performance Platform CapacityLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735231/product_specifications/en/HB-P3.6-en-Specification-Performance-Rated-Occupancy.htm165HB-P3.6-enRated Occupancy1 Person1 Person12HB-P3.6-en Specification Performance Rated OccupancyLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number735221/product_specifications/en/HB-P3.6-en-Specification-Performance-Weight.htm164HB-P3.6-enWeight575 lbs261 kg11HB-P3.6-en Specification Performance WeightLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryPerformanceProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyCertificationLanguage TagsModel Number79415/Video_Library/Hy-Brid-Lifts-by-Custom-Equipment.htm01https://www.youtube.com/embed/zi_N-UHKdVc?rel=0/files/thumbnails/Video-Thumbnails/Hy-Brid-Lifts-by-CE.pngHy-Brid Lifts by Custom Equipment<p>Custom Equipment, LLC&nbsp;is a scissor lift manufacturing company located in Richfield, WI, about 30 miles north of Milwaukee. The company was started in 1981 by Steve and Lynn Kissinger as a small fabrication and welding repair shop. From 1981 to 2003, Custom Equipment made lifts for use in the death care industry. These casket lifts had to be strong enough to lift 1,000 lbs but light enough to not damage mausoleum floors, and so in 2004, Hy-Brid Lifts were born. These unique scissor lifts were launched after the Kissingers saw a need for smaller and lighter work platforms in the construction industry. Since then, Hy-Brid Lifts has grown to be a globally recognized name in low-level aerial work platforms with distributors around the globe.</p> <p>Hy-Brid Lifts are the <a href="/ansi/Scissor-Lifts.htm" linktype="2" target="_self">lightest scissor lifts</a> in the industry with <a href="/ansi/GoHyer/2021/What-is-Floor-Load-and-how-do-Scissor-Lifts-Stack-Up.htm" linktype="2" target="_self">floor loading pressures</a> as low as 62.7 PSI. As a result, they don&#39;t cause damage to finished or sensitive flooring, like mezzanines, data centers, offices, and hospitals with raised floors, allowing Hy-Brid Lifts to be used on the jobsite from start to finish. These compact scissors easily fit through standard doorways and in personnel elevators for efficient transport. They also offer full swing gates and low step-in heights to make loading materials safer and easier for operators. Combined with superior maneuverability, all-steel construction, and powder coat paint, these scissor lifts are highly durable and rental tough.</p> <p>The <a href="/ansi/Scissor-Lifts/Push-Around-Series.htm" linktype="2" target="_self">Push-Around Series</a> includes small chassis lifts that are safer than ladders and more efficient than scaffolding. Due to their compact design, they&#39;re easy to maneuver into position and have full locking casters. Standard AGM batteries mean these scissor lifts require very&nbsp;little&nbsp;maintenance.</p> <p>The <a href="/ansi/Scissor-Lifts/Zero-TurnSeries.htm" linktype="2" target="_self">Zero-Turn Series</a> consists of three self-propelled, mid chassis scissor lifts. Designed to compete with 12 ft mast lifts, these scissors offer&nbsp;innovative point-and-go zero-turn&nbsp;radius steering, as well as proportional lift and drive systems. A large work platform with a 30 in EZ-Glide slide out extension deck, built-in tool tray, and maintenance-free AGM batteries complete these lifts.</p> <p><a href="/ansi/Scissor-Lifts/ProSeries.htm" linktype="2" target="_self">Pro Series</a> scissor lifts are self-propelled, large chassis work platforms with <a href="/ansi/GoHyer/2021/Scissor-Lift-Platform-Capacities-by-Brand.htm" linktype="2" target="_self">unparalleled lifting capacities</a>. These slab scissors also include a proportional drive system, a 30 in EZ-Glide slide out extension deck, a built-in tool tray, and counter rotating wheels that prevent floor surface damage.</p>Hy-Brid Lifts: A History of InnovationFrom casket lifts to low-level scissor lifts, Hy-Brid Lifts has a history of building safe, heavy-duty products for customers around the world.LanguageParts_Component_TypeParts_Model_NumberProduct_CertificationsProduct_FAQ_Lookup_IDsProduct_Lookup_KeyProduct_MobilityProduct_Serial_Number_RangeProduct_Specification_CategoryProduct_StatusProduct_Working_Height_FeetProduct_Working_Height_MetersRegionRelated_ProductsVideo_Lookup_KeyHy-Brid-Lifts-by-Custom-EquipmentCertificationLanguage TagsModel NumberProduct SeriesVideo CategoriesCompany InfoFamiliarizationLanguageenParts_Component_TypeParts_Model_NumberProduct_CertificationsCEProduct_FAQ_Lookup_IDsProduct_Lookup_KeyHB-P3.6-enProduct_MobilityPush-Around Scissor LiftProduct_Serial_Number_RangeProduct_Specification_CategoryProduct_StatusPast ModelProduct_Working_Height_Feet11.81 ftProduct_Working_Height_Meters3.6 mRegionEuropeRelated_ProductsVideo_Lookup_KeyHy-Brid-Lifts-by-Custom-EquipmentCategoriesCertificationLanguage TagsModel NumberProduct Series02021-06-30T12:42:08.67000

For additional resources, visit our library.
